Master Thesis - Paper reviews 01
Enhanced Deep Residual Networks for Single Image Super-Resolution
CVPR 2017
-
It uses a modified version of ResNet architecture. It removes batch normalization layers from residual blocks.
-
Each residual block consist of conv1-Relu-conv2 and skip connnections.

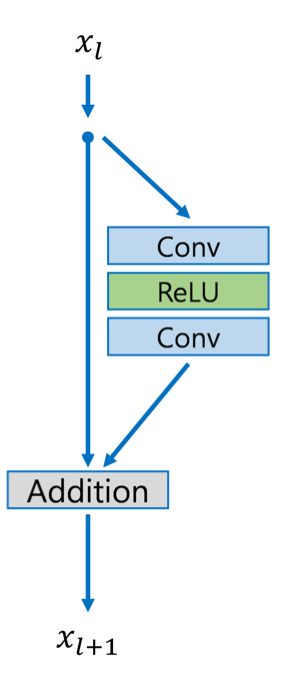

Fig.1: residual block used in EDSR
- To increase training stability, residual block scaling added as shown in Fig.2.

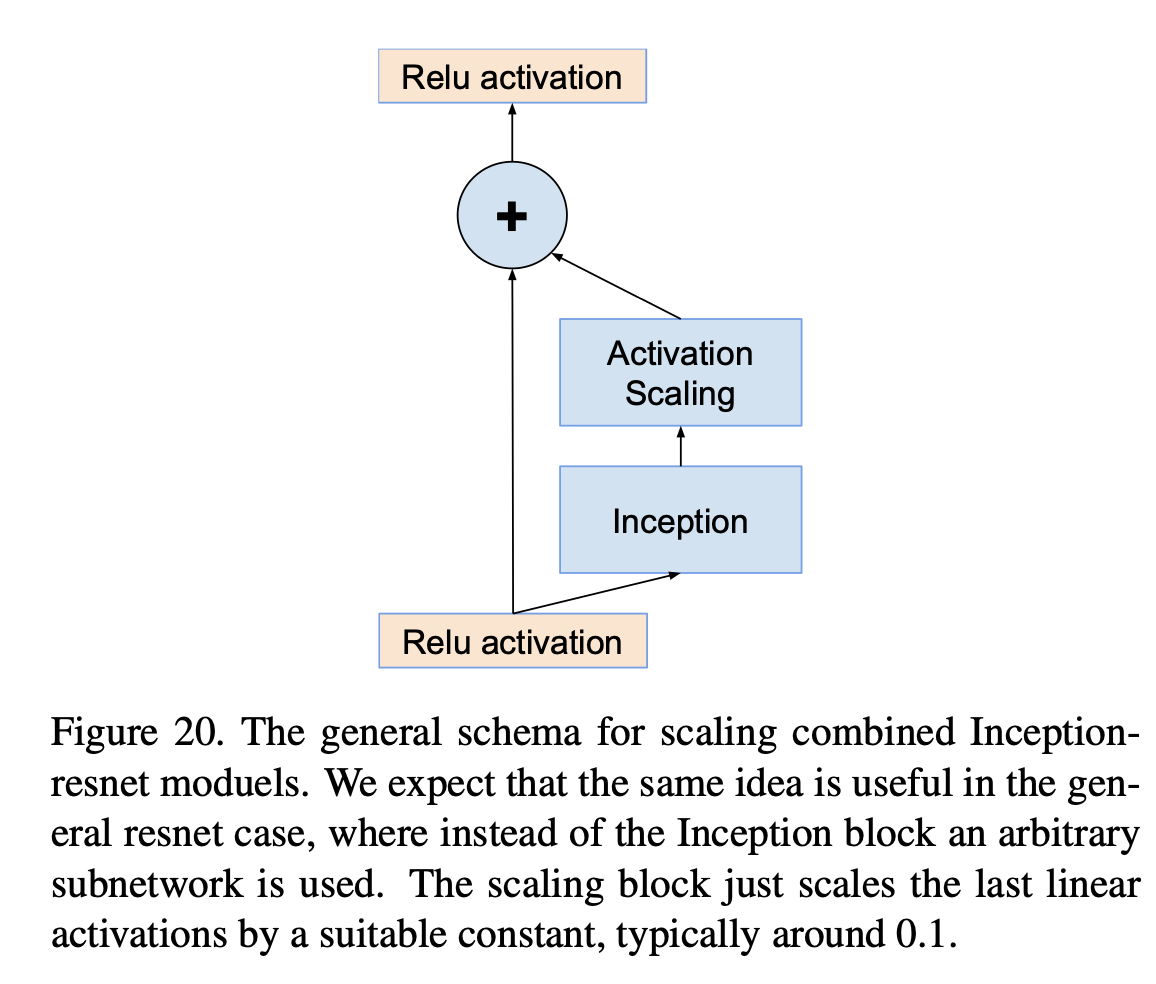

Fig.2: Residual block scaling
-
They want to increase network layer(depth) instead of increasing number of feature channel(width) because of increasing width instead of depth increases model parameters more.
-
Important: There is no RELU layer outside the residual blocks.
-
In final model: depth: 32 layers, width: 256 filters, scale factor: 0.1
-
Training speed can be accelerating for x3 and x4 upscaling factors using pretrained x2 network parameters at initialization. (like transfer learning - fine tuning)
-
For single scale model which is called as EDSR, for each scale factor, network is trained separately as shown in Fig.3. Also, Fig.3 shows general architecture of EDSR.

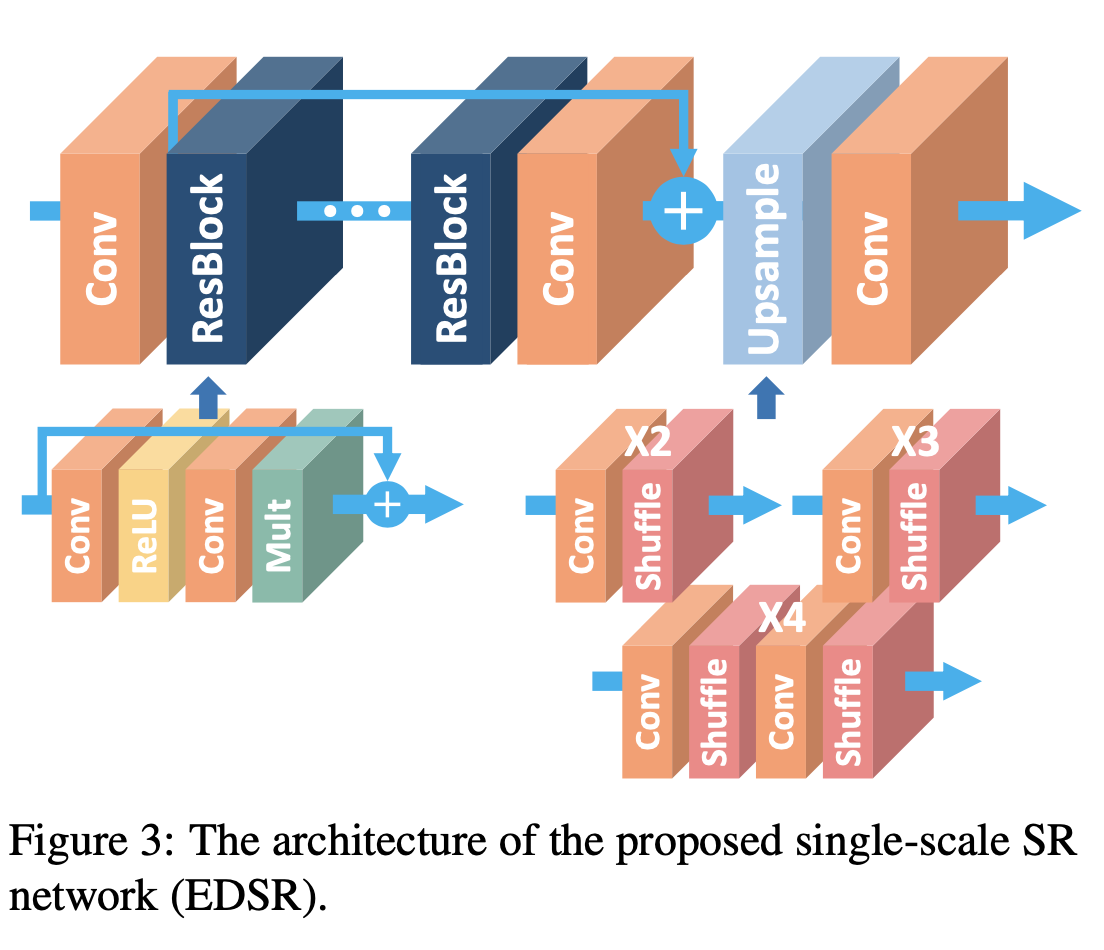

Fig.3: Single Scale Model(EDSR)
- There is also multi-scale model which is called MDSR. Fig.4 shows the architecture of the MDSR and models(MDSR/EDSR) are compared.

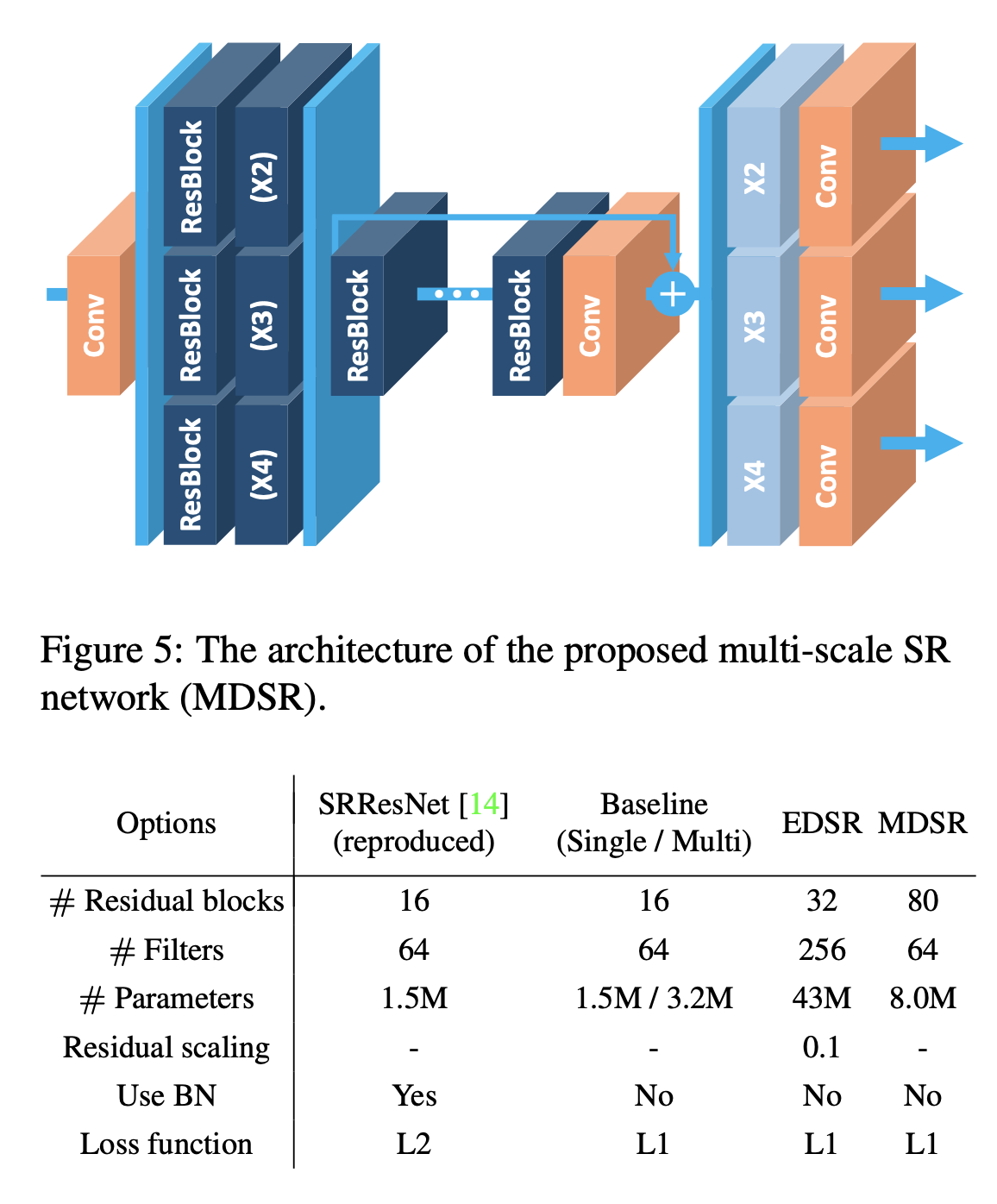

Fig.4: Multi Scale Model(MDSR)
-Training: DIV2K dataset is used
- Input: RGB 48x48 patches
- Augment training data with rotations and random flips
- Preprocess all images by subtraction mean RGB value
- ADAM optimizer is used($\beta_1 = 0.9\,,\,\beta_2 = 0.999\,,\, \epsilon = 10^{-8}$).
- Batch size: 16
- Learning rate: $10^{-4}$ initially and halved at every $2*10^5$ batch updates.
- For EDSR model, first x2 model is trained and x3 and x4 model uses pretrained weights from x2 model for initialization.
- For MDSR, batch is randomly selected from x2, x3 and x4. Then, only selected scale parameters are enabled and activated.
-
L1 loss is used instead of L2 loss because of stability issues.(L1 provides better convergence).
- Results and Project Codes
